Spherical Refractory Ni-Ti Powder 45-150µm
产品型号：
Product Features
Classification:Metal Powders
Keywords: tantalum powder, tungsten powder
Product details
Stardust company provide Ni-Ti powder has outstanding biocompatibility, high specific strength and excellent mechanical properties, and is widely used in biomedical, aerospace, 3C electronics and other fields. Radio-frequency plasma spherical titanium powder have high purity, high sphericity , no satellite spheres, excellent flow properties, and high bulk density, no hollow particle etc charateristics. Suitable for 3D printing, hot isostatic pressing, ejection molding, and other processes.
We can not only provide relatively mature research on pure Ni-Ti spherical powder but also provide 3D printing services, metal spheroidization services, 3D printing machines and devices .
- Spherical Refractory Ni-Ti Powder Particle Size
5-25μm, 15-45μm, 15-53μm, 45-75μm, 45-105μm, 75-150μm.
(Various granularities can be customized according to customer requirements)
- Particle Size Distribution Graphic
- Spherical Refractory Ni-Ti Powder Characteristics
High purity (≥99.9%), low oxygen (≤300ppm), high sphericity (≥98%), smooth surface, no satellite spheres, uniform particle size distribution, and excellent flow properties (≤25.0s/50g), And high bulk density (≥2.1g/cm³) and tap density (≥2.8g/cm³).
- Spherical Refractory Ni-Ti Powder Applicable Progress
- Laser/electron beam additive manufacturing (SLM/EBM, 3D printing)
- Laser direct deposition (DLD)
- Powder hot isostatic pressing (HIP)
- Metal injection molding (MIM)
- Powder metallurgy (PM)
- Laser cladding ( LC), and other processes.
- Spherical Refractory Ni-Ti Powder Packaging
Vacuum packaging, 1kg/bag, 2kg/bag; iron drum lined with plastic bag 25 kg/drum; special packaging is available according to user requirements.
- Chemical Composition
| Chemical Composition | |||||
| Element | Value (%) | Test Method | Element | Value (%) | Test Method |
| Ti | Remaining | — | Ni | 54-57 | ICP-AES |
| Cr | 0.004 | ICP-AES | Fe | 0.008 | ICP-AES |
| Si | <0.008 | ICP-AES | W | <0.001 | ICP-AES |
| Al | <0.006 | ICP-AES | Other | <0.05 | ICP-AES |
| Gas Impurities | |||||
| Element | Value (%) | Test Standard | Element | Value (%) | Test Standard |
| C | 0.0066 | GB/T 4324-2012 | O | 0.042 | GB/T 4324-2012 |
| N | 0.0071 | GB/T 4324-2012 | H | 0.001 | GB/T 4324-2012 |
- Physical Property
| Density （g/cm3) | Hall Flow Rate (s/50g) | |||
| Apparent Density | Tap Density | Test Standard | Value | Test Standard |
| 3.57 | 4.26 | GB/T 1479-1984 GB/T 5162-2006 |
17.0 | GB/T 1482-2010 |

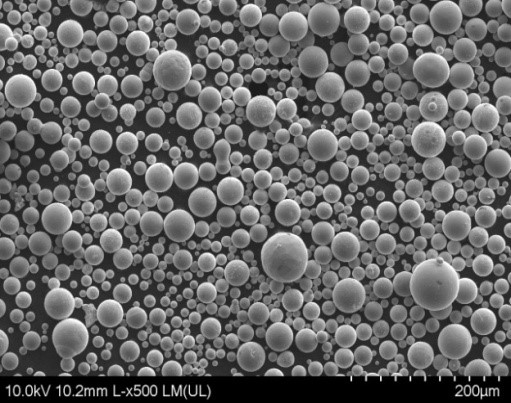

- Appearance
